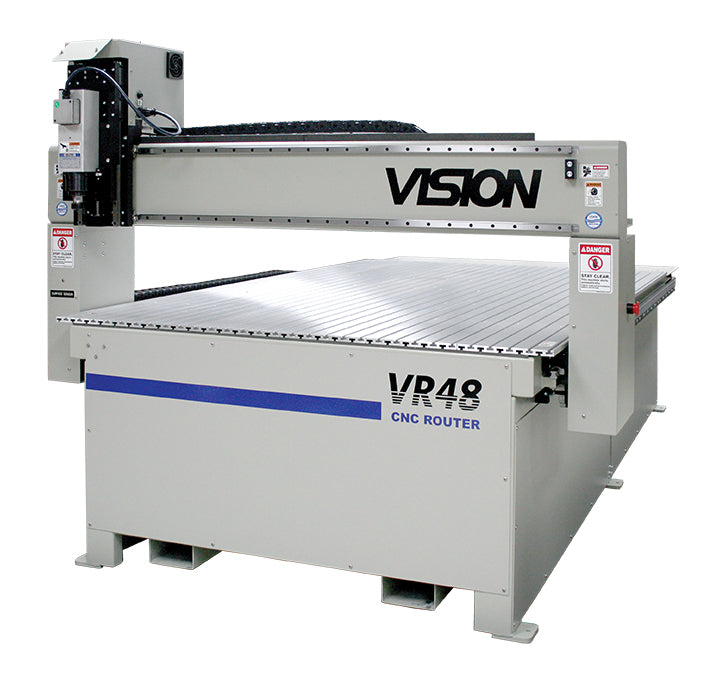

VR48 Large Format CNC Router & Engraver
VR48 Large Format CNC Router & Engraver
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
Couldn't load pickup availability
| Software | Vision Express standard (Expert or Pro optional) |
| Maximum Work Area | 51" x 101" |
| Z-Axis Stroke | 12" |
| Standard Spindle Power | 3 HP |
| Resolution / Speed | 0.0005" - 10"/sec |
| Table Type | Aluminum T-slot or optional vacuum |
| Interface | Ethernet |
| Controller | Series 5 Controller w/ Advance V-Touch Pendant |
| Warranty | 1-Year Limited |
| Power Requirements | 110V 5 Amps/ Single phase 220V 50 Amps |
| Physical Dimensions | 75"(W) x 125"(D) x 72"(H) |
| Series 5 Controller Dimensions | 13.5"(W) x 16"(D) x 4.5"(H) |
| Weight | 2,500 lbs |
| Additional Options | Automatic Braille Inserter, DACS (Digitally Aligned Cutting System), Vacuum Table, 4.4 HP & 7HP Spindles, *3D Engraving Software, Oscillating Knife |
