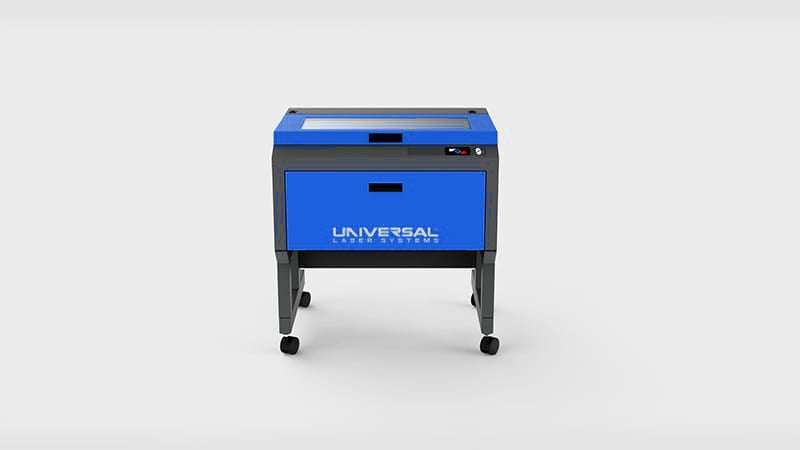

VLS3.75 Universal Laser Machine
VLS3.75 Universal Laser Machine
POA
SKU: VLS3.75
| Laser Material Processing Area (W x H) | 24 x 12 in (610 x 305 mm) |
| Maximum Part Size (W x H x D) | 29 x 17 x 8.0 in (737 x 432 x 203 mm) |
| Overall Dimension (W x H x D) | 36 x 38 x 30 in (914 x 965 x 762 mm) |
| Rotary Capacity | Max Diameter: 7 in (177 mm) |
| Motorized Z Axis Lifting Capacity | 40 lbs (18 kg) |
| Available Focus Lenses | 2.0 in (50 mm) HPDFO™ (High Power Density Focusing Optics) |
| Laser Platform Interface Panel | Five button keypad |
| Computer Requirements | Requires dedicated PC with Windows® 7/8/10/11 32/64 bit and one available USB port (2.0 or higher) |
| Optics Protection | Integrated with included gas assist |
| Cabinet Style | Free-Standing |
| Laser Options | 10, 30, 40, 50, 60 and 75 Watts |
| Weight | 235 lbs (107 kg) |
| Power Requirements | 110V/10A 220V-240V/5A |
| Exhaust Requirements | One 4 in (102 mm) port 250 CFM @ 6 in static pressure (425 m3/hr at 1.5 kPa) |
