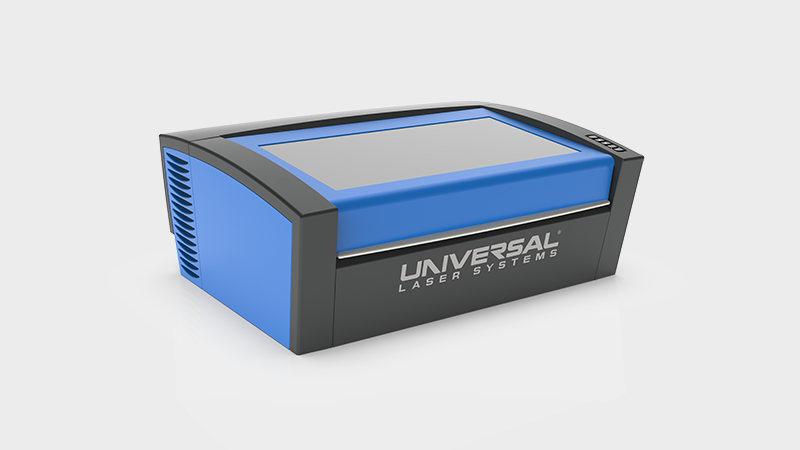

VLS3.60DT Universal laser Machine
VLS3.60DT Universal laser Machine
POA
SKU: VLS3.60DT
| Laser Material Processing Area (W x H) | 24 x 12 in (610 x 305 mm) |
| Maximum Part Size (W x H x D) | 26.75 x 14.6 x 4 in (679 x 370 x 102 mm) |
| Overall Dimension (W x H x D) | 34 x 14 x 25 in (864 x 356 x 635 mm) |
| Rotary Capacity | Max Diameter: 5.0 in (127 mm) Min Diameter: 0.5 in (12.7 mm) |
| Motorized Z Axis Lifting Capacity | 20 lbs (9 kg) |
| Available Focus Lenses | 2.0 in (50 mm) HPDFO™ (High Power Density Focusing Optics) |
| Laser Platform Interface Panel | Five button keypad |
| Computer Requirements | Requires dedicated PC with Windows® 7/8/10/11 32/64 bit and one available USB port (2.0 or higher) |
| Optics Protection | Integrated with included gas assist |
| Cabinet Style | Desktop |
| Laser Options | 10, 30, 40, 50 and 60 Watts |
| Weight | 95 lbs (43 kg) |
| Power Requirements | 110V/10A 220V-240V/5A |
| Exhaust Requirements | One 3 in (76 mm) port 250 CFM @ 6 in static pressure (425 m3/hr at 1.5 kPa) |
