Kendall Engraving Supplies

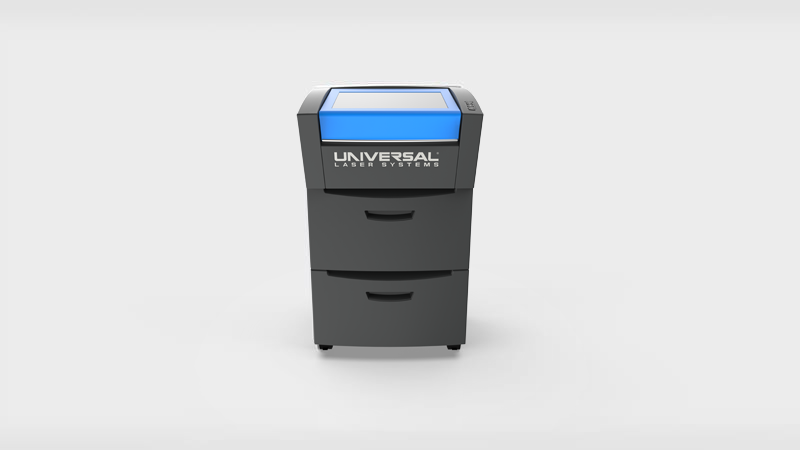

VLS.230DT Laser Machine

VLS.230DT Laser Machine

POA

Laser Material Processing Area (W x H) 16 x 12 in (406 x 305 mm)
Maximum Part Size (W x H x D) 18.75 x 14.6 x 4.0 in (476 x 370 x 102 mm)
Overall Dimension (W x H x D) 26 x 14 x 25 in (661 x 356 x 635 mm)
Rotary Capacity Max Diameter: 5.0 in (127 mm)
Min Diameter: 0.5 in (12.7 mm)
Motorized Z Axis Lifting Capacity 20 lbs (9 kg)
Available Focus Lenses 2.0 in (50 mm)
HPDFO™ (High Power Density Focusing Optics)
Laser Platform Interface Panel Five button keypad
Computer Requirements Requires dedicated PC with Windows® 7/8/10/11 32/64 bit and one available USB port (2.0 or higher)
Optics Protection Integrated with included gas assist
Cabinet Style Desktop
Laser Options 10 and 30 Watts
Weight 70 lbs (32 kg)
Power Requirements 110V/10A
220V-240V/5A
Exhaust Requirements One 3 in (76 mm) port
150 CFM @ 6 in static pressure (255 m3/hr at 1.5 kPa)
