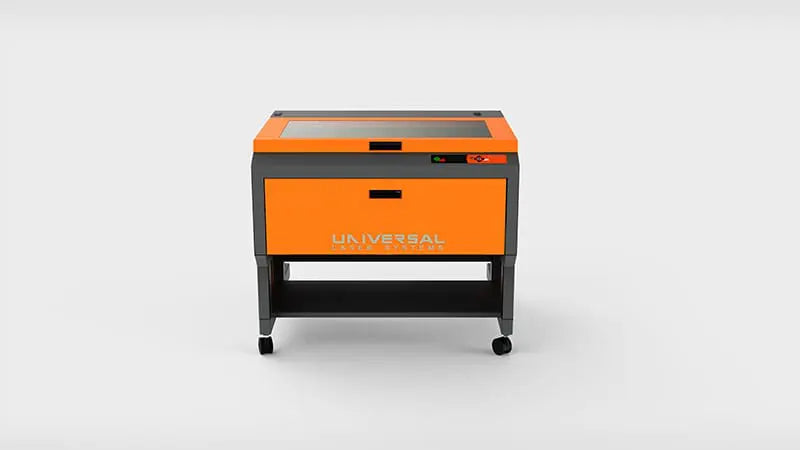

PLS6MW Platform Universal Laser Machine
PLS6MW Platform Universal Laser Machine
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
Couldn't load pickup availability
SKU: PLS6MW
| Laser Material Processing Area (W x H) | 32 x 18 in (813 x 457 mm) |
| Maximum Part Size (W x H x D) | 37 x 23 x 8.4 in (940 x 584 x 215.9 mm) |
| Overall Dimension (W x H x D) | 44 x 39 x 36 in (1118 x 991 x 914 mm) |
| Rotary Capacity | Max Diameter 8 in (203 mm) with 2.0 Lens; (150mm) with 4.0 Lens |
| Motorized Z Axis Lifting Capacity | 40 lbs (18 kg) |
| Available Focus Lenses | (51 mm) *standard 102mm |
| Laser Platform Interface Panel | Keypad and LCD display show current file name, laser power, engraving speed, PPI and run time. |
| Computer Requirements |
PC running Windows XP/Vista/7/8/8.1 32-bit and 64-bit. USB 2.0 |
| Optics Protection | Air Assist Optional |
| Cabinet Style | Floor-Standing |
| Laser Options | 10.6µm (Fiber) - 40 and 50 Watts 10.6µm - 10, 25, 30, 40, 50, 60, 75 Watts 9.3µm - 30 and 50 Watts |
| Weight | 345 lbs (156 kg) |
| Power Requirements | 110V/10A or 220V-240V/5A |
| Exhaust Requirements | Two 102 mm ports 850 m³/hr at 1.5 kPa |
