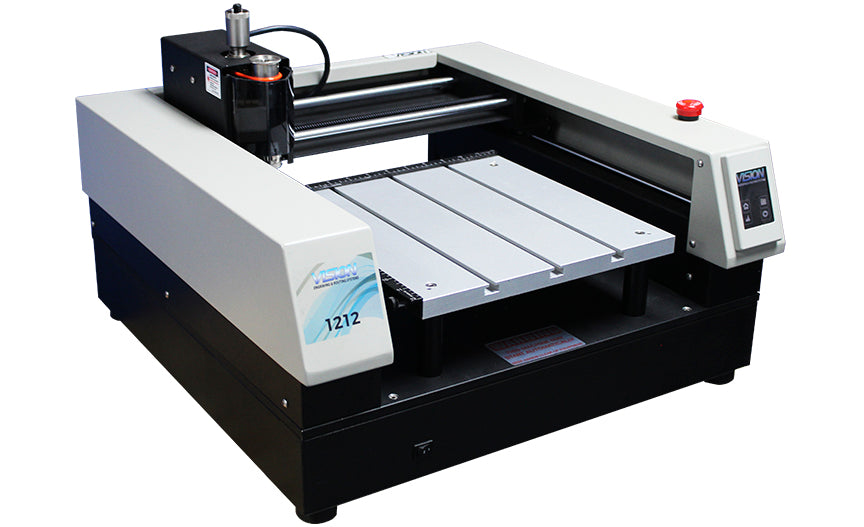

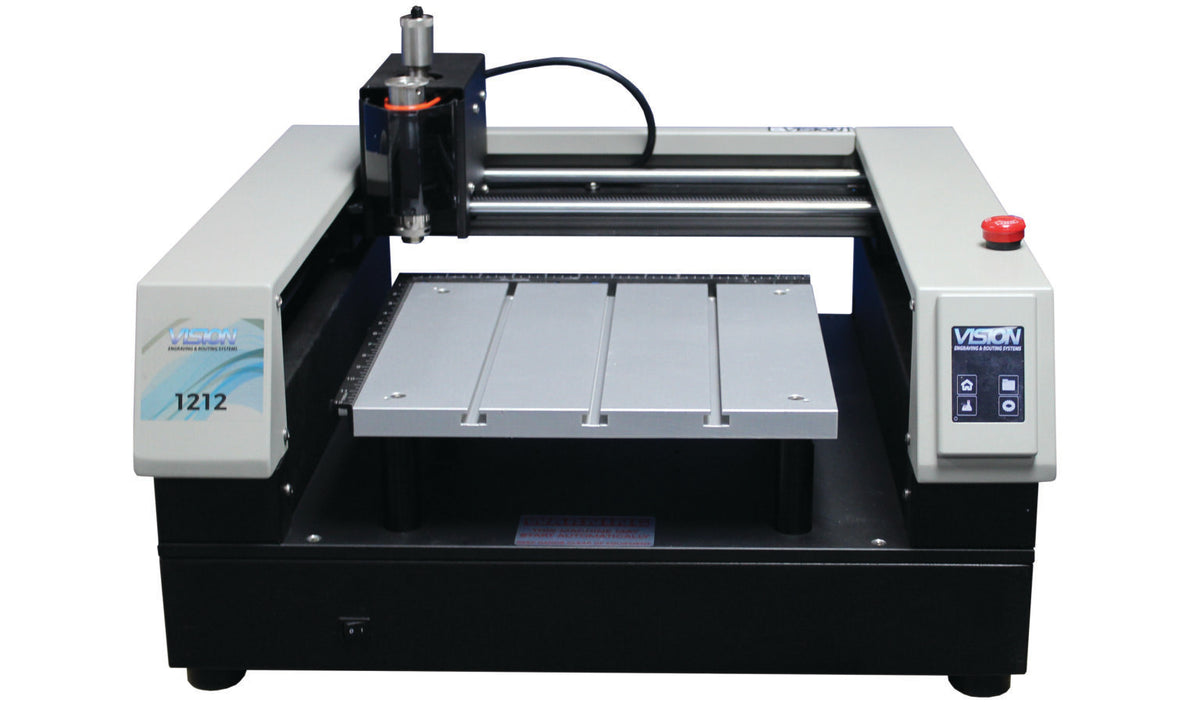

Phoenix 1212 Engraving Machine
Phoenix 1212 Engraving Machine
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
Couldn't load pickup availability
| Software | Vision Express Standard (Expert or Pro optional) |
| Maximum Work Area | 12" x 12" |
| Maximum Size Part | 17.5" (L) x Any Width x 3" (H) |
| Z-Axis Stroke | 1" Standard (1.75" with Riser Kit) |
| Spindle Type | 11/64", 6mm or 1/4" / Top-Loading, Collet Spindle Available |
| Table Type | Aluminum T-slot |
| Interface | Ethernet |
| Controller | V-Touch Multi Functional Touch Screen |
| Warranty | 2-Year Limited |
| Power Requirements | 110/220V 5 Amp |
| Physical Dimensions | 21.5"(W) x 24"(D) x 11"(H) |
| Series 5 Controller Dimensions | 13.5"(W) x 16"(D) x 4.5"(H) |
| Shipping Dimensions | 25"(W) x 30"(D) x 19"(H) - 85 lbs (controller 19" x 19" x 12" - 30 lbs) |

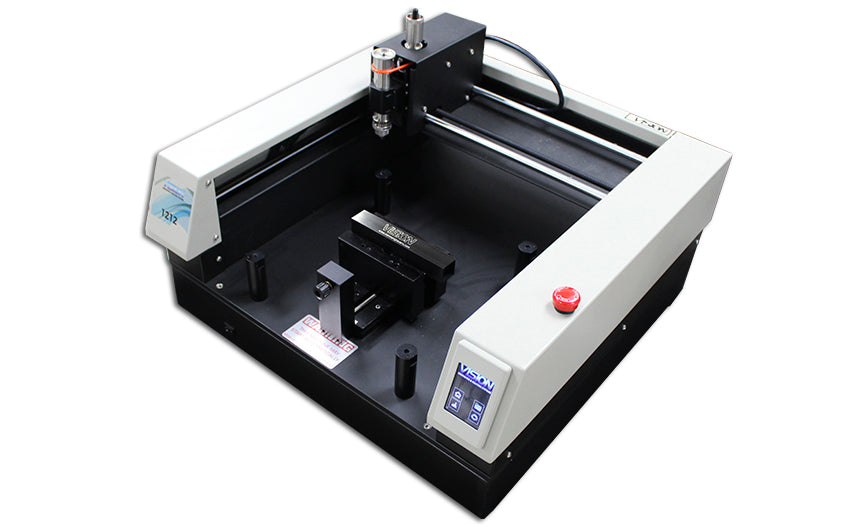

| Additional Options | Self-Centering Deep Vise, *3D Engraving Software |
