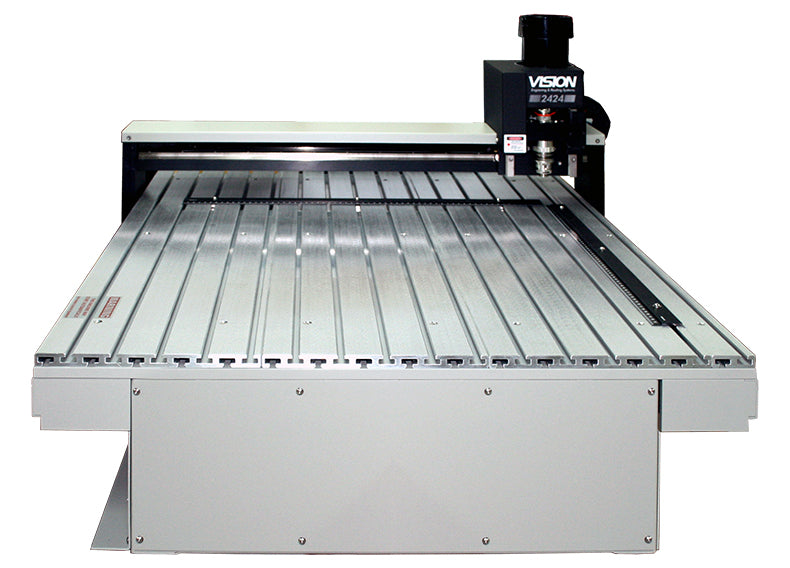

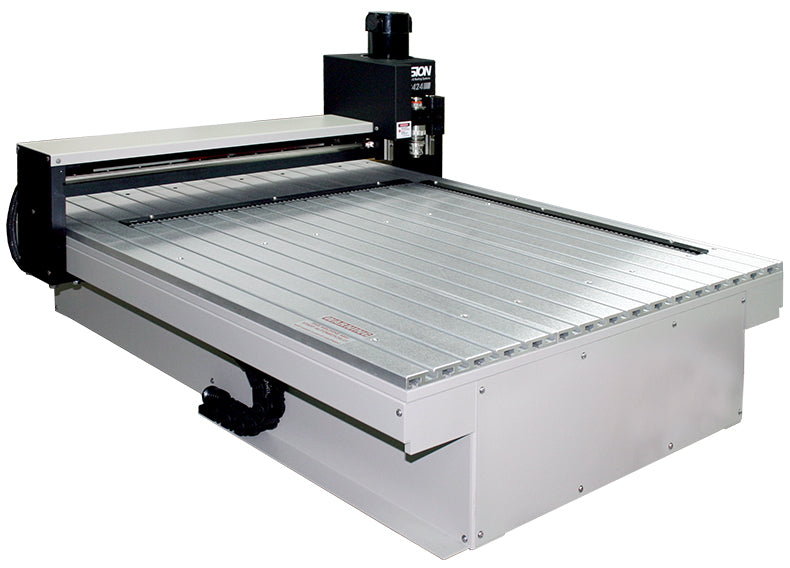

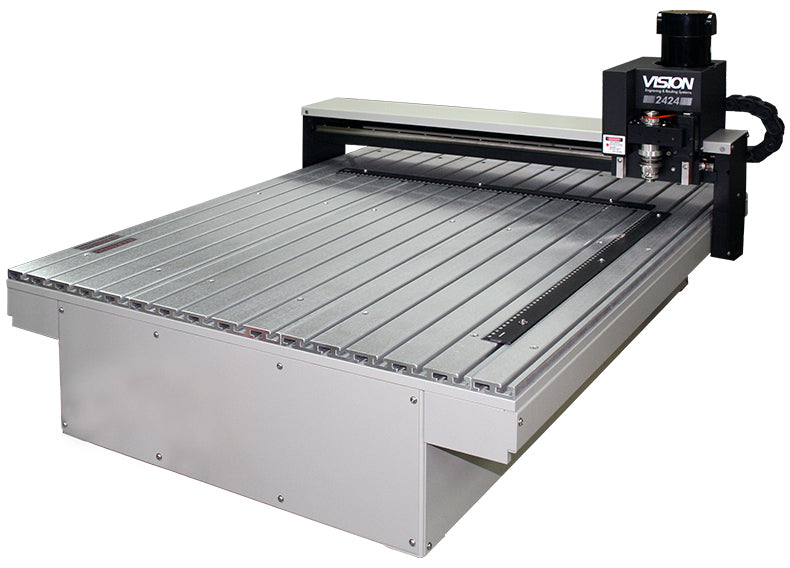

2424 Large Format Engraving Machine
2424 Large Format Engraving Machine
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
Couldn't load pickup availability
| Software | Vision Express standard (Expert or Pro optional) |
| Maximum Work Area | 24" x 24" |
| Maximum Size Part | 30.5" (L) x Any Width x 5" (H) |
| Z-Axis Stroke | 1.75" Standard (3.375" with Riser Kit) |
| Spindle Type | 11/64", 6mm or 1/4" / Top Loading, Collet Spindle Available |
| Resolution / Speed | 0.0002" - 10"/sec |
| Table Type | Aluminum Flat Bed Table (Optional Aluminum T-slot Table) |
| Interface | Ethernet |
| Controller | Series 5 Controller with V-Touch Pendant |
| Warranty | 2-Year Limited |
| Power Requirements | 110/220V 5 Amp |
| Physical Dimensions | 33"(W) x 42"(D) x 20"(H) |
| Series 5 Controller Dimensions | 13.5"(W) x 16"(D) x 4.5"(H) |
| Shipping Dimensions | 43"(W) x 80"(D) x 30"(H) - 532 lbs |
| Additional Options | Automatic Braille Inserter, 50,000 RPM Spindle, *3D Engraving Software, DACS (Digitally Aligned Cutting System) |
