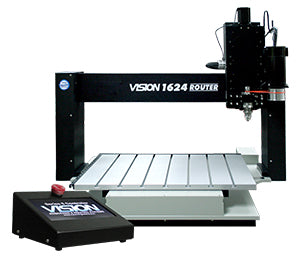

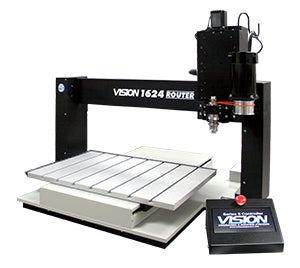

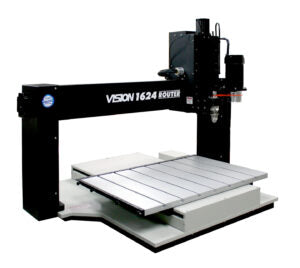

1624R CNC Router & Engraver
1624R CNC Router & Engraver
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
Couldn't load pickup availability
| Software | Vision Express standard (Expert or Pro optional) |
| Maximum Work Area | 16" x 24" |
| Maximum Size Part | 30.5" (L) x Any Width x 7" (H) |
| Z-Axis Stroke | 7" (Standard) or 10" (Optional) |
| Spindle Type | Engraving Head standard. 3 HP Router Motor optional |
| Resolution / Speed | 0.0002" - 10"/sec |
| Table Type | Aluminum T-slot |
| Interface | Ethernet |
| Controller | Series 5 Controller w/ V-Touch Pendant |
| Warranty | 2-Year Limited |
| Power Requirements | 110/220V 15 Amp |
| Physical Dimensions | 31.5"(W) x 35"(D) x 19"(H) |
| Series 5 Controller Dimensions | 13.5"(W) x 16"(D) x 4.5"(H) |
| Shipping Dimensions | 43"(W) x 41"(D) x 30"(H) - 290 lbs |
| Additional Options | Automatic Braille Inserter, DACS (Digitally Aligned Cutting System), 3 HP High Frequency Router Motor, 50,000 RPM Spindle, 3D Engraving Software, Oscillating Knife |
